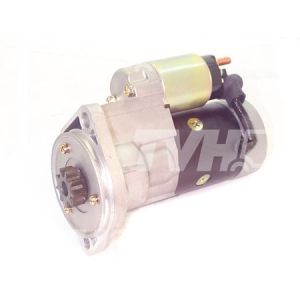

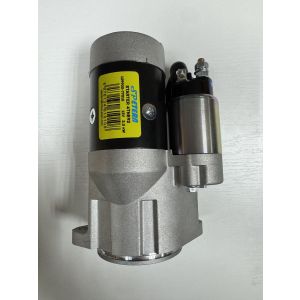

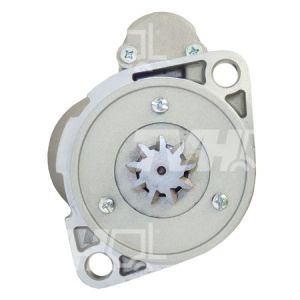

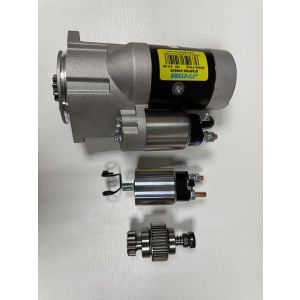

Стартер Yanmar 4TNE92 4TNE98 4TNV94L 129900-77010

Starter type

eccentric

Type of head

P

Voltage (V)

12

Power (kW)

2.3

Neck diameter D1 (mm)

94.5

Pinion diameter D2 (mm)

35.5

Number of teeth

9

Direction of rotation of the pinion

clockwise

Overall length of the starter L (mm)

228

Distance between pinion and flange L2 (mm)

20.5

Number of holes

2

Position of fixation holes

35-05-00

Distances between fixation holes

120

Diameter mounting holes D3 (mm)

13

Oil sealed

NO
