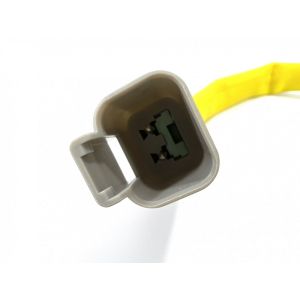

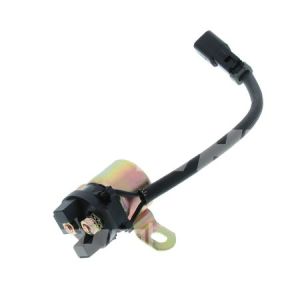

Реле стартера CATERPILLAR 125-1302. Аналог.

11 900
+

Реле стартера CATERPILLAR 125-1302.

Аналог.  CAT 308C; 311B; 319C; 320B; D250E; D300E



Для CAT 308C; 311B; 319C; 320B; D250E; D300E

Аналоги 1251302, 125-6694, 1256694.





Shape of the contactor
round shape 1
Maximum length of the contactor L1 (mm)
75
Maximum width of the contactor W1 (mm)
40
Maximum height of the contactor H1 (mm)
54
Maximum diameter of the contactor D1 (mm)
34
Number of solenoids
1
Voltage of the solenoid (V)
24
Type of current
direct current
Resistance of the solenoid (Ohm)
18.5
Number of connections on the solenoid
1
Type of connection on the solenoid
wire with connector
Length of the cable of the coil L2 (mm)
230
Number of contact connections
2
Type of contact connection
outer thread
Outer thread size
M6
Pitch metric of outer thread (mm)
1
Right / left outer thread
right-handed
Fuse present
NO
External diode present
NO
External resistor present
NO
Number of normal open contacts (NO)
1
Auxiliary contact present
NO
Magnetic blow outs present
NO
Top cover
closed
Shortest center distance between mounting holes C1 (mm)
53
Number of closed holes
2
Shape mounting surface
flat
Support present
NO
