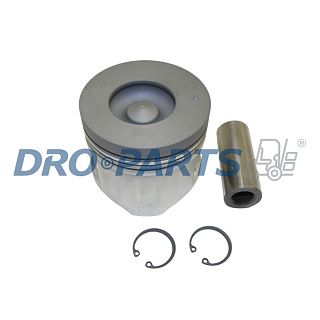

Поршень 14Z–II Toyota 13103-78781-71

Поршень двигателя TOYOTA  14Z–II вилочного погрузчика Toyota.

Каталожный номер TOYOTA 131037878171

Piston Diameter D1 (mm)
98.43

Total Height H1 (mm)
88

Shaft Diameter PD (mm)
32

Shaft Length PL (mm)
76.9

Compression Height CH (mm)
50

Height H2
-19

Width S1 (mm)
2.1

Width S2 (mm)
2.1

Width S3 (mm)
3.9

Type of Head
268

Weight (kg)
0.73

Diameter of the combustion bowl D2 (mm)
49

Pin present
YES
