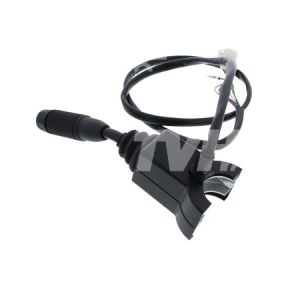

Переключатель хода вперед/назад Konecranes SMV18 6047001

41 400
+
Переключатель хода вперед/назад , подрулевой, Konecranes SMV18 6047001
Number of connections
2

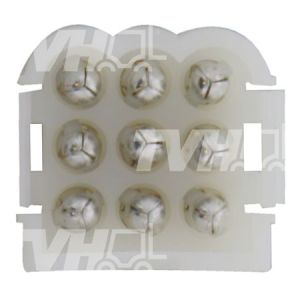

Type of the connection
wire with connector-wire with pin
Number of wires
10
Number of pins
10
Diameter steering column mounting D1 (mm)
44.8
Total length of the steering column switch L1 (mm)
258
Total width of the steering column switch W1 (mm)
78
Total height of the steering column switch H1 (mm)
125
Length of the cable L2 (mm)
1320
Number of mounting holes
2
Diameter of the mounting holes D3 (mm)
5
Shortest center distance between mounting holes C1 (mm)
65
Material of the housing
metal-plastic
Number of levers
1
Forwards present
YES
Neutral present
YES
Reverse present
YES
Neutral Lock present
NO
Park present
NO
Slow speed present
NO
Fast speed present
NO
Gear present
YES
Number of gears
4
Automatic gear selection present
NO
Cruise control present
NO
Horn present
NO
Left/right direction indicator present
NO
Position light present
NO
Low beam present
NO
High beam present
NO
High beam flashing present
NO
Master light switch present
NO
Automatic light present
NO
Fog light present
NO
Warning light present
NO
Worklight present
NO
Revolving/ strobe light present
NO
Wiper present
NO
Windscreen washer present
NO
