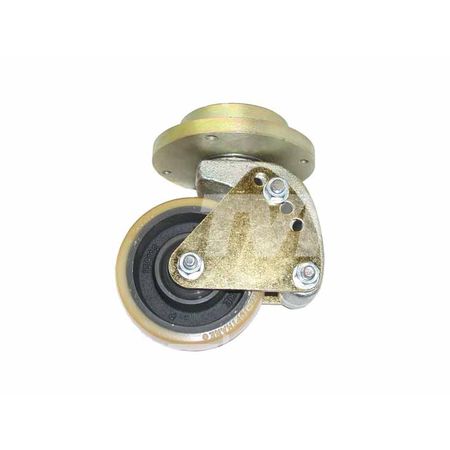

Опора колесная в сборе штабелера STILL EGV-S 14 4494133
Опора колесная в сборе штабелера STILL EGV-S 14 4494133
Вес 10,45 кг
Размеры колеса: 140 х 60мм
|
Sort of castor |
swivel castor |
Type of mounting |
cylindrical top plate |
|
Diameter of the wheel D (mm) |
140 |
Width of the wheel W (mm) |
60 |
|
Material of the wheel (grouped) |
polyurethane |
Wheel material detail |
vulkollan |
|
Material of the rim |
cast iron |
Number of bolt holes |
4 |
|
Diameter of the bolt holes D-BH (mm) |
10 |
Thread type of the bolt holes TA2 |
M10 |
|
Diameter of the top plate D-TOP (mm) |
160 |
Height of the stem H-ST (mm) |
15 |
|
Eccentricity EXC (mm) |
35 |
Mounting height H-MO (mm) |
187 |
|
Total height H-T (mm) |
199 |
Adjustable height |
YES |
|
Brake present |
NO |
Damping present |
NO |
|
Foot guard present |
NO |
Directional lock present |
NO |
|
Maximum load (kg) |
790 |
Maximum speed at maximum load (km/h) |
10 |
|
Sort of castor |
swivel castor |
Type of mounting |
cylindrical top plate |
