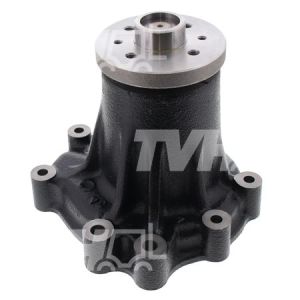

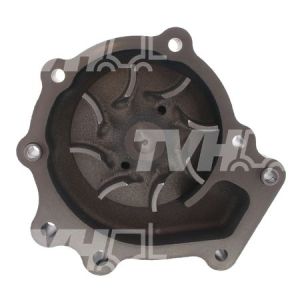

Насос водяной (помпа) CASE 87596435
20 580
₽
Насос водяной (помпа) CASE 87596435. Аналог. Вес (кг): 7,6
|
Sort waterpump |
flange |
Type waterpump |
A1 |
|
Total height H1 (mm) |
179 |
Maximum length L1 (mm) |
190 |
|
Shaft diameter D1 (mm) |
27.8 |
Neck diameter D2 (mm) |
36 |
|
Flange/gear or pully diameter D3 (mm) |
94 |
Total number of mounting holes in the flange (holes + thread) |
6 |
|
Number of threads |
6 |
Biggest thread TA1 |
M8 |
|
Metric pitch Pm1 (mm) |
1.25 |
Smallest thread TA2 |
M6 |
|
Metric pitch Pm2 (mm) |
1 |
Smallest centre distance of nearest mounting holes C1 (mm) |
22.5 |
|
Biggest centre distance of nearest mounting holes C2 (mm) |
43 |
Thread of mounting cooling fan present |
NO |
|
Gasket included |
YES |
|
|
