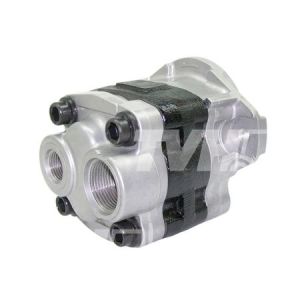

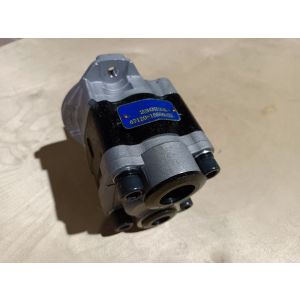

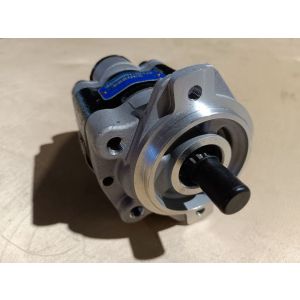

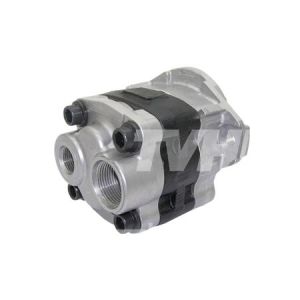

Насос гидравлический Toyota 8FG10-18 67120-16600-71
Насос гидравлический Toyota 8FG10-18 67120-16600-71.
Аналог.
|
Type of pump |
gearpump |
Number of elements |
1 |
|
Type of flange |
type AA |
Thread type of mounting holes TA1 |
M10 |
|
Center distance of mounting holes flange C1 (mm) |
106 |
Total length of pump L1 (mm) |
149 |
|
Neck diameter D2 (mm) |
82.5 |
Type of shaft |
type D |
|
Distance from flange to end L2 (mm) |
36 |
Diameter of shaft D3 (mm) |
17 |
|
Number of splines |
10 |
Direction of rotation |
clockwise |
|
Position of suction port 1st element, only for pump type T POS-CO1 |
rear |
Type of connections suction port1st element, only for pump type T TY-COa |
type E |
|
Thread type suction side of 1st element TA-Pa |
1 5/16 UNF |
Position of pressure 1st element, only for pump type T POS-CO2 |
rear |
|
Type of connections pressure 1st element, only for pump type T TY-COb |
type E |
Thread type pressure side of 1st element TA-Pb |
7/8 UNF |
|
Flow control valve present |
NO |
Material of the housing |
metal |
|
Type of pump |
gearpump |
Number of elements |
1 |
|
Type of flange |
type AA |
Thread type of mounting holes TA1 |
M10 |
