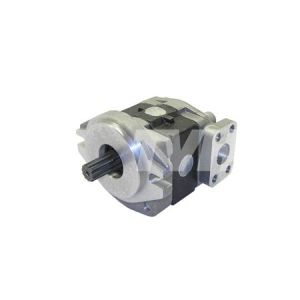

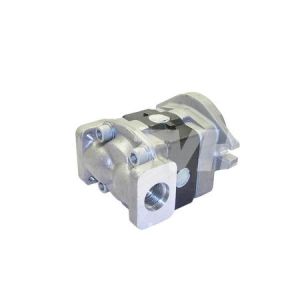

Насос гидравлический Komatsu FD10,15,18,20 3EA-60-44110

15 924
+

Насос гидравлический Komatsu FD10,15,18,20  (4D92E) 3EA-60-44110

Аналог.

Type of pump

gearpump

Number of elements

1

Type of flange

type B

Center distance of mounting holes flange C1 (mm)

106

Total length of pump L1 (mm)

166

Neck diameter D2 (mm)

82.5

Type of shaft

type D

Distance from flange to end L2 (mm)

36

Diameter of shaft D3 (mm)

18.4

Number of splines

11

Direction of rotation

counterclockwise

Position of suction port 1st element, only for pump type T POS-CO1

side

Type of connections suction port1st element, only for pump type T TY-COa

type C

Thread type of connections suction 1st element

M10

Center distance between mounting holes C-CO1a (mm)

26.2

Center distance between mounting holes C-CO2a (mm)

52.4

Position of pressure 1st element, only for pump type T POS-CO2

side

Type of connections pressure 1st element, only for pump type T TY-COb

type E

Thread type pressure side of 1st element TA-Pb

3/4 BSP

Flow control valve present

NO

Material of the housing

metal





Type of pump

gearpump

Number of elements

1

Type of flange

type B

Center distance of mounting holes flange C1 (mm)

106
