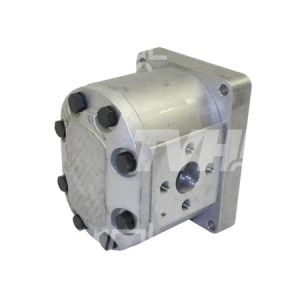

Насос гидравлический C72Х В2488091 Балканкар

22 600
+
Насос гидравлический C72Х В2488091 Балканкар
Type of pump
gearpump
Number of elements
1
Type of flange
type J
Diameter of flange mounting holes D1 (mm)
9
Center distance of mounting holes flange C1 (mm)
98.4
Center distance of mounting holes flange C2 (mm)
128.1
Total length of pump L1 (mm)
172
Neck diameter D2 (mm)
50.8
Type of shaft
type G
Distance from flange to end L2 (mm)
47
Diameter of shaft D3 (mm)
19
Key (way) width W (mm)
4
Thread type (on shaft) TA2
M14
Direction of rotation
clockwise
Position of suction port 1st element, only for pump type T POS-CO1
side
Type of connections suction port1st element, only for pump type T TY-COa
type B
Thread type of connections suction 1st element
M10
Center distance between mounting holes C-CO1a (mm)
51
Position of pressure 1st element, only for pump type T POS-CO2
side
Type of connections pressure 1st element, only for pump type T TY-COb
type B
Thread type of connection pressure port 1st element TA-COb
M8
Center distance between mounting holes C-CO1b (mm)
40
Flow control valve present
NO
Material of the housing
aluminium
