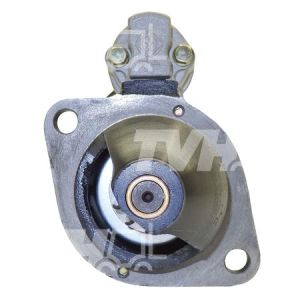

Стартер Xinchai 485BPG 490BPG 490B-51000
10 110
₽
Стартер Xinchai 485BPG 490BPG 490B-51000
12V, 11 зубьев
|
Starter type |
standard |
Type of head |
Z |
|
Voltage (V) |
12 |
Power (kW) |
3.7 |
|
Neck diameter D1 (mm) |
81.5 |
Pinion diameter D2 (mm) |
39 |
|
Number of teeth |
11 |
Direction of rotation of the pinion |
clockwise |
|
Overall length of the starter L (mm) |
321 |
Distance between pinion and flange L2 (mm) |
20 |
|
Distance between pinion and nose L3 (mm) |
24 |
Distance drive cover L4 (mm) |
74 |
|
Number of holes |
2 |
Position of fixation holes |
55-25-00 |
|
Distances between fixation holes |
120 |
Diameter mounting holes D3 (mm) |
13 |
|
Oil sealed |
NO |
|
|
